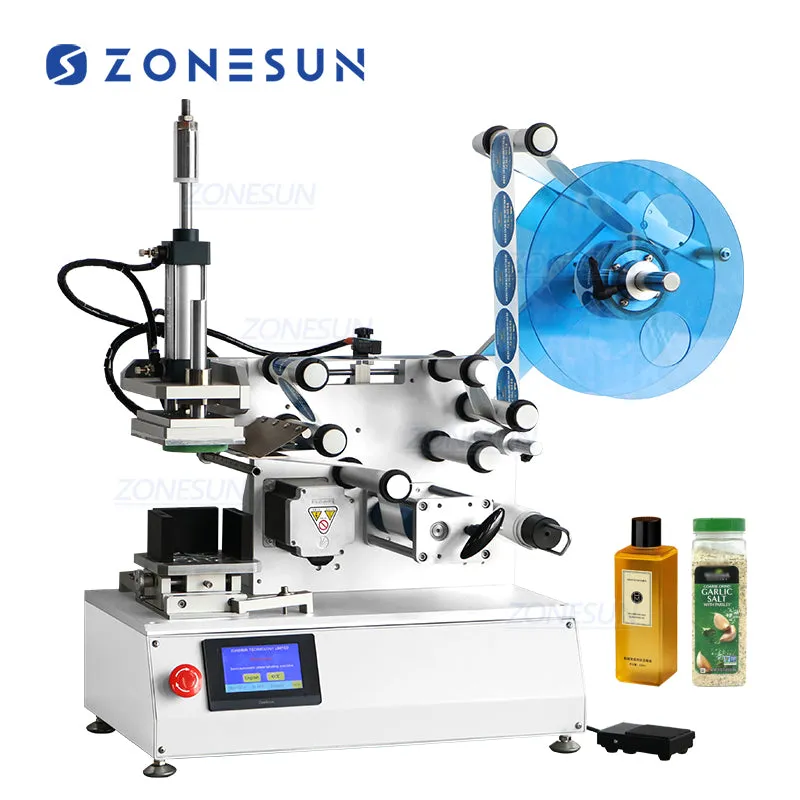

Name: ZONESUN ZS-TB802 Semi-automatic Pneumatic PET Plastic Square Bottle Bucket Caps Paper Boxes Top Side Flat Surface Self Adhesive Sticker Labeling Machine
SKU: 418327

Product Details ＋

Video For Semi-automatic Flat Surface Label Applicator

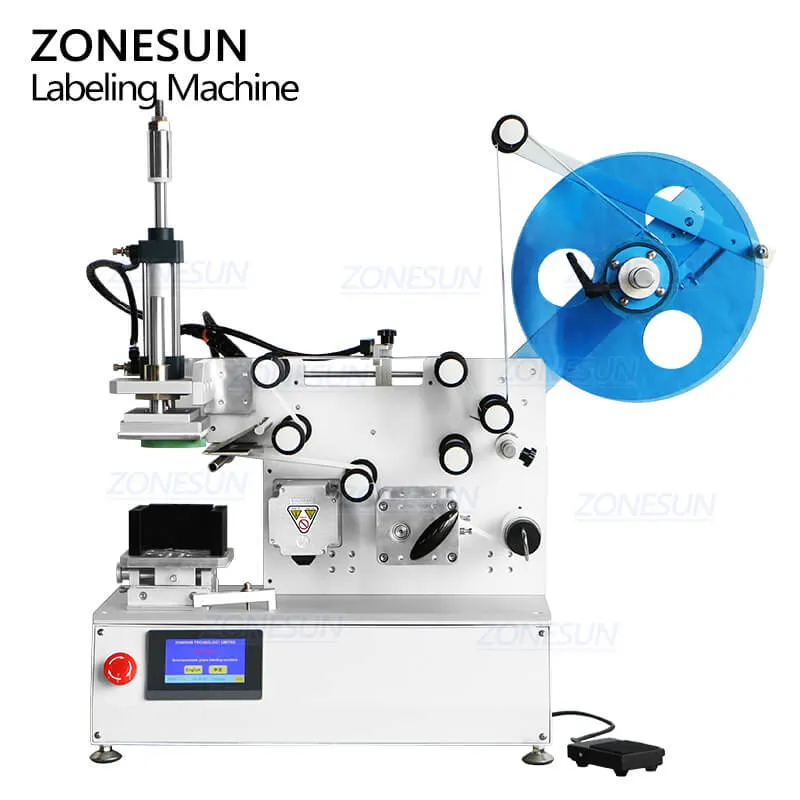

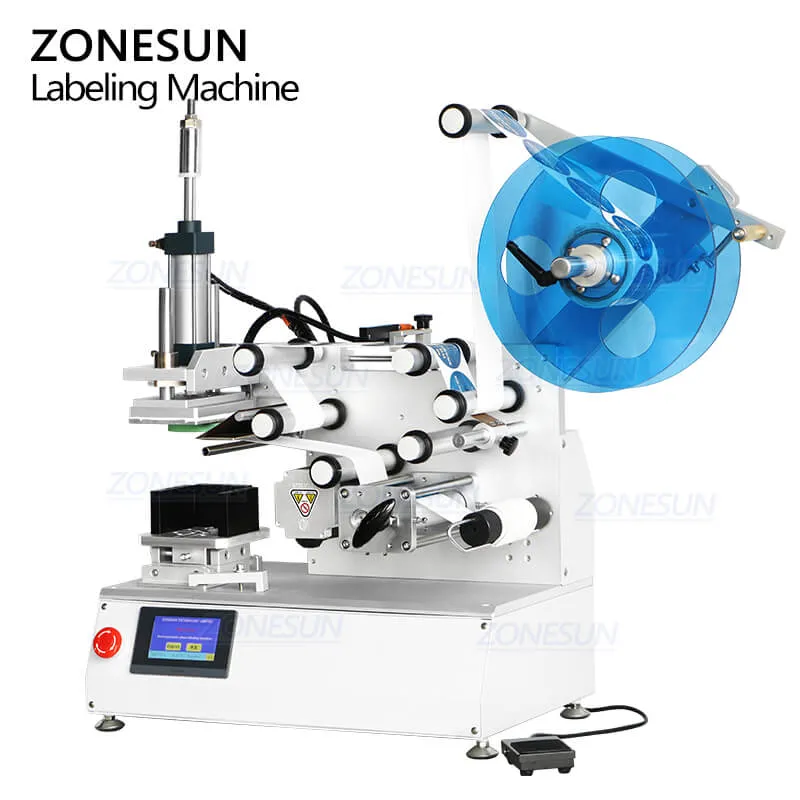

This semi-automatic labeling machine is designed for sticking self-adhesive stickers onto flat surface of bottles, boxes.There are many small holes in the sponge of the labeling component. Through the work of the cylinder, the label on the label roll can be sucked and completely attached to the flat surface of the product. By changing the mold, the machine will be suitable for flat labeling of various irregular products.

Parameter

Machine model:ZS-TB802
Machine voltage:110/220V 50-60HZ
Labeling accuracy:±0.5mm
Labeling speed:About 15-30 pieces/min
Suitable product:20mm-200mm*20mm-150mm*0.2mm-120mm(L*W*H)
Label size:20mm-100mm (W) 15-150mm(Bottom paper height)
Label inner diameter:ø76mm
Label outer diameter:ø300mm
Machine size:About 840mm*470mm*840mm
Machine weight:About 48kg
Package size:About 920*520*890mm
Package weight:About 78kg

Main Feature

1. Labeling is carried out by means of suction and sticking to achieve labeling on the plane of various work pieces, such as cosmetic flat bottles, packaging boxes, plastic cover labeling, etc.

2. Change the labeling mechanism, which can be applied to uneven surface labeling, such as labeling of concave planes and circular planes.

3.Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.

4.It need to custom the fixture to apply to the labeling of various irregular work pieces.(please send you bottle or measure your bottle size )

5.We can custom the machine to apply your label and bottle . please contact with us

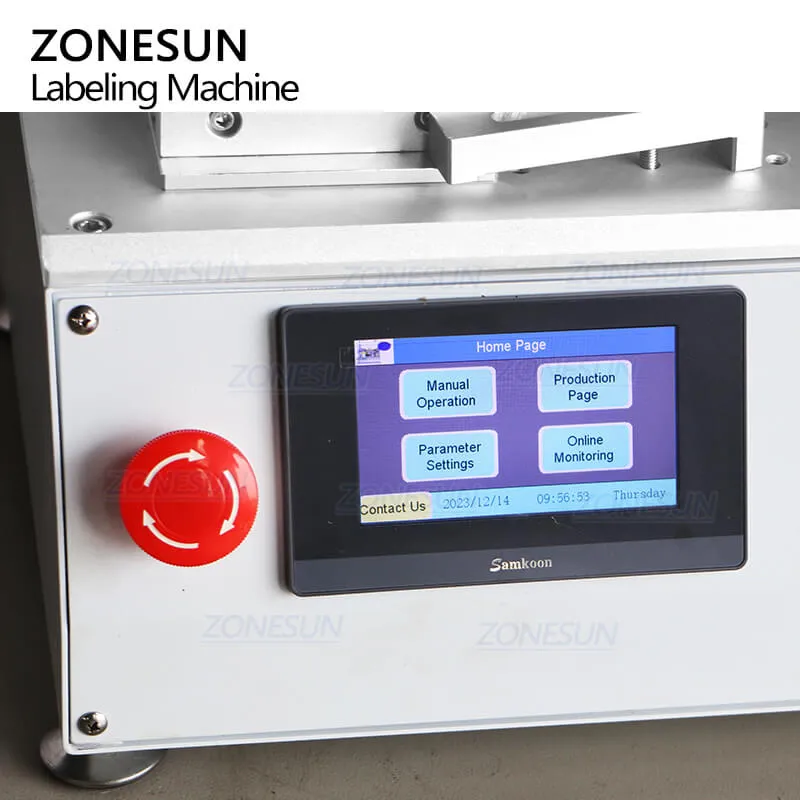

Equipped with PLC touch screen control panel, working data like labeling speed, labeling time can be adjusted more intuitively and convenient. The operation language can be customized according to production need.

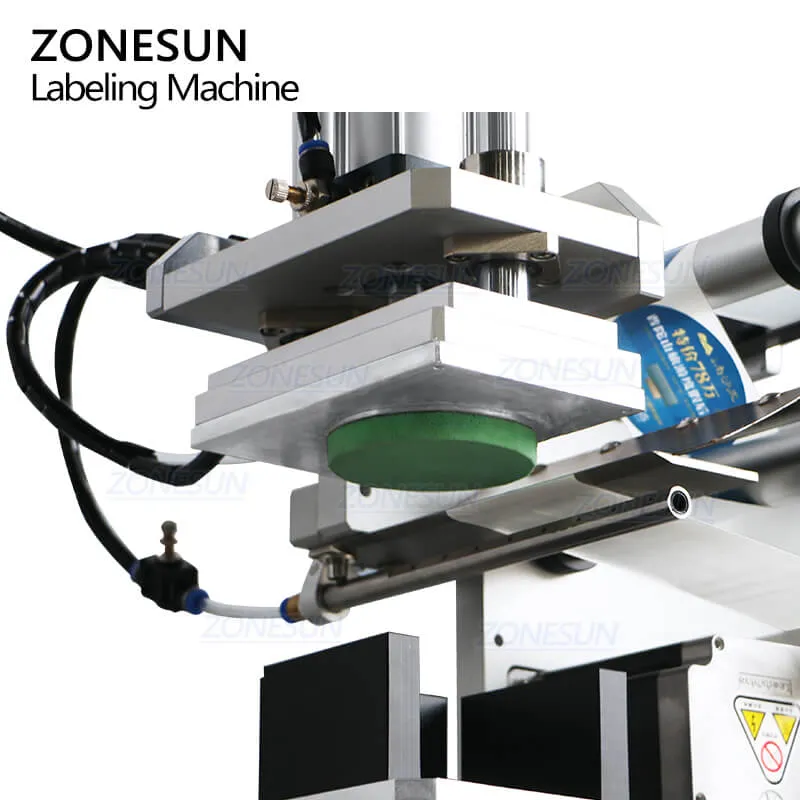

There are many small holes in the sponge of the labeling component. Through the work of the cylinder, the label on the label roll can be sucked and completely attached to the flat surface of the product.

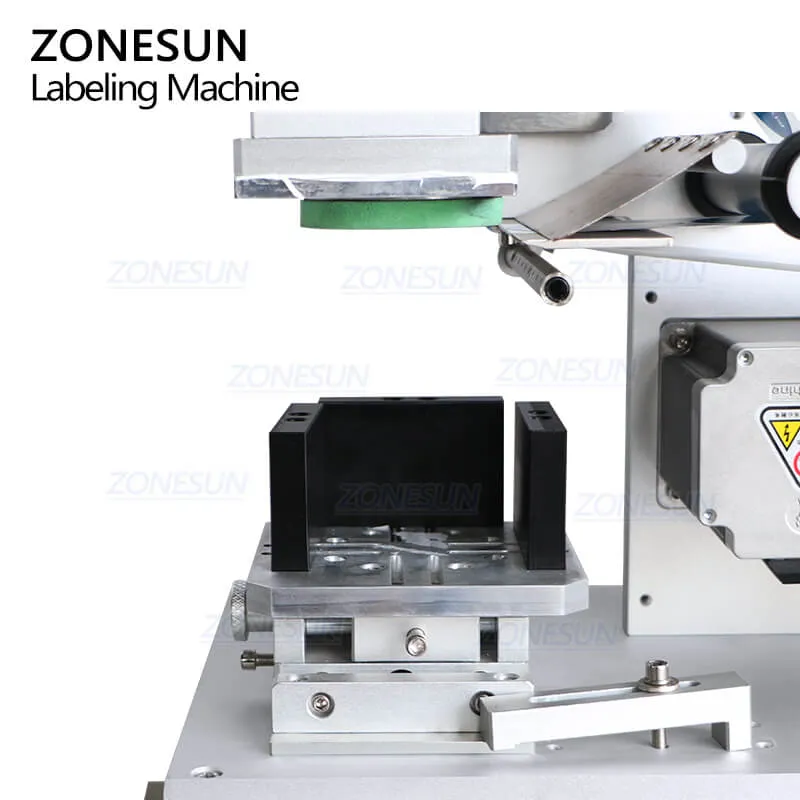

The mold is customized according to labeling objects,changing fixing mold can make the machine be suitable for flat labeling of various irregular products.

The label sensor can help the machine output labels correctly based on light transmittance, improves working accuracy.

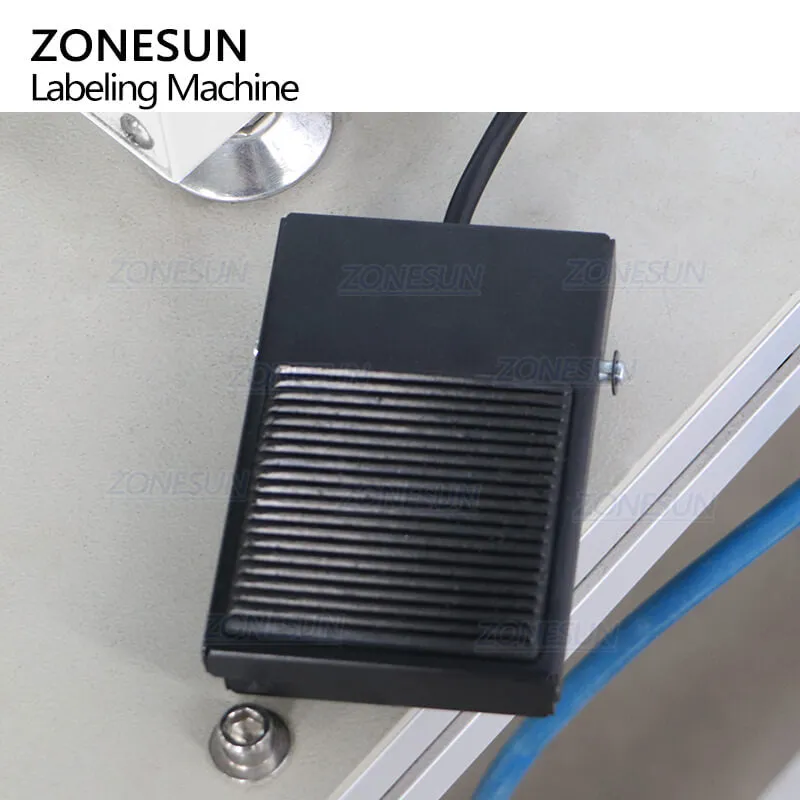

Equipped with pedal switch to control the machine work, it free operators’ hands during working, improves working efficiency.
