Product Description
-

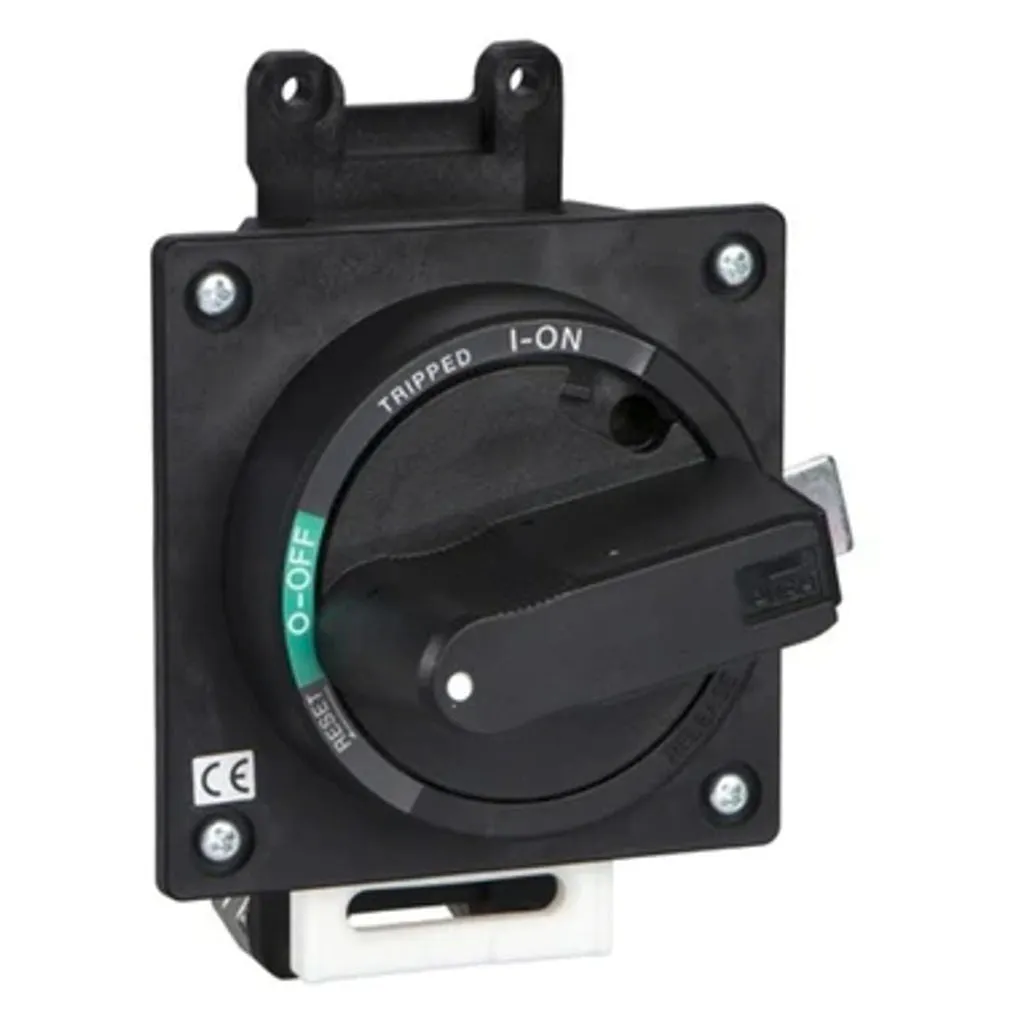

It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices
-
It is suitable for isolation and it is used for standard applications
-
It maintains the access to trip unit settings and to the push to trip button
-
It is equipped with a standard black handle
-
There is an indication of the three device positions O (OFF), I (ON) and tripped
-
The degrees of protection are IP40 and IK07
-
This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm)
-
As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact EZC |
|
Product Code |
EZEROTDS |
|
Product Type |
Direct Rotary handle |
|
Color |
Black |
|
Accessory / Separate Part Type |
Control Accessories |
|
Handle Front Plate Colour |
Black |
|
Reference |
EZC250 |
|
Rotary Handle Mounting Style |
Direct |
|
Rotary Handle Padlocking |
3 Padlocks Max |
|
Rotary Handle Mounting Location |
Front |
|
Warranty |
As Per Manufacturer Terms and Condition |
