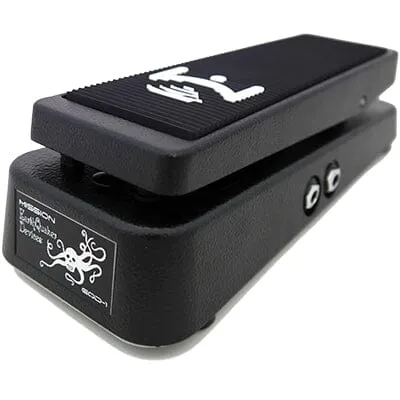

ONE EXPRESSION PEDAL FOR ALL YOUR EARTHQUAKER DEVICES

Selectable outputs to work with all EarthQuaker Devices pedals and many more besides. The 25K output is perfect for the Sunn LifePedal, Avalanche Run and Rainbow Machine. You can also use it with many other brands of effects pedals, MIDI controllers and keyboards.

Select the 100K output for effects such as the Hummingbird that work best with a higher resistance expression pedal.

The EQD-1 also has a 5V CV output. This works perfectly with the Afterneath, and can also be used with many other products that support CV such as keyboards, synthesizers and Eurorack modules.

Pedal dimensions are 9″ x 4″ x 3″
Weight is 3.5lb
Power: 9VDC center pin negative, 30mA

Output 1:  Selectable 25K or 100K TRS tip to wiper
Output 2: 5V CV
