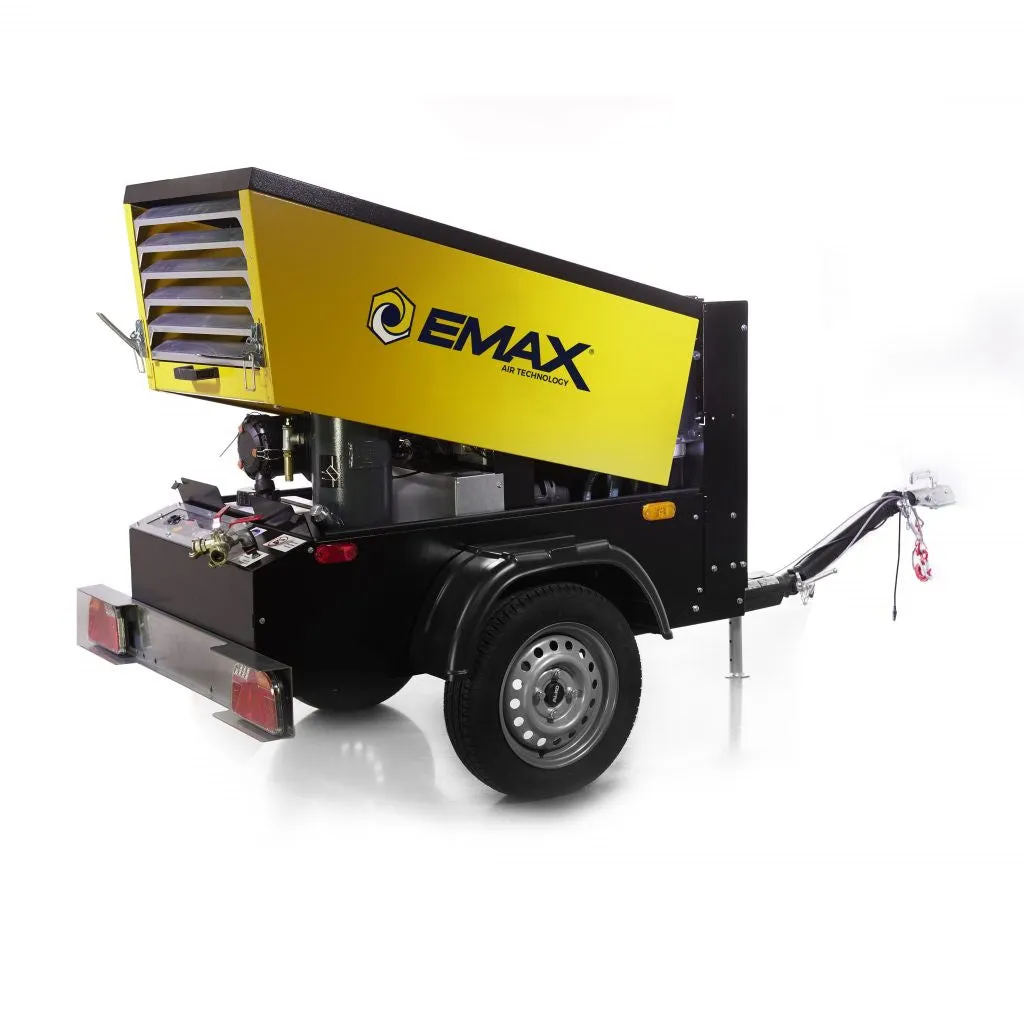

Emax EDS090TR 90 CFM Trailer Mounted Diesel Rotary Screw Air Compressor

Features:

• Belt drive
• Heavy duty but light weight and well balanced
• Quiet operating exhaust and weather-proof canopy 100% duty cycle
• Liquid cooled 3 cyl top rated Kubota engine
• Cold weather starting glow plugs
• Variable speed on demand engine control reduces load for better fuel consumption
• Proven German made (since 1939) rotary screw pump
• 100% duty cycle
• Easy spin on/off Mann brand fuel, oil and air filters
• Large radiator cooling capacity
• Adjustable hitch will adjust in seconds to any hitch height
• Trailer option that is dot certified for highway use (includes title for registration)
• Center position lifting ring for easy loading and unloading
• Large led tail lights
• Hot dipped galvanized under suspension/grill, ball hitch attachment, tail light and instrument panel
• Made in the USA

Specifications:

• Free air delivery | 90 SCFM@100PSI
• Working pressure (adjustable 80/125) PSI | Set Pressure 7 Bar/100 PSI
• Fuel consumption at full load & full engine speed | 0.8 gal per hr
• Oil tank for storage and separation capacity | 1.7 gal
• Suction air filter with silencer, reusable standard cartridge | qty 2
• Compressed air outlets | 1″ 2 x G3/4˝

Engine:

• Brand | KUBOTA EPA Certified
• Type | D1105 TIER IV
• Number of cylinders | 3
• Horsepower | 24.3
• Engine RPM – full load | 3000 RPM
• Engine RPM – idling | 1800 RPM
• Fuel type | Diesel
• Cooling type | Water
• Fuel Tank Capacity | 11 gal

Compressor:

• Pneumatic suction valve
• Safety valve calibrated for suitable service pressure
• Coupling type | belt drive
• Oil capacity | 1.7/6.5 Gallon/Liters

Battery:

• Voltage | 12v
• Capacity | 70 Ah
• Starting current | 640 A

Cooling & Lubrication:

• Air cooling with aluminum radiator, designed to operate safely in a temperature range from 14°F/-10°C up to 122°F/ 50°C
• Fan mounted on the engine water pump, ensuring optimum cooling
• Oil tank for storage and separation including separator element

Start-up:

• Electric
• Closed valve empty start managed automatically

Regulation:

• On demand variable speed regulation, gradual flow control from idle to full load fuel saver and reduces wear and tear
• Automatic unloading phase at engine stop

Control Panel:

• Key switch for secure storage and compressor start
• Controller
• Key Switch
• Liquid Filled Pressure Gauge
• Glow Plug Panel Light
• Hour Meter
• Instrument Panel Light

Safety Devices:

• Monitoring functions with automatic stop
• Discharge temperature of the screw block
• Engine oil pressure & temperature
• Cooling water temperature
• Tier IV Final Meets US Emissions Standards
• Ball coupling

Unbraked Axle:

• Tires | 165/70 R14
• Tire pressure | 2.5/36.25 BAR/PSI
• Adjustable towbar
• Unbraked axle and max towbar | 116"l, 53"w
• Height with closed hood | 57"
• Weight stationary mount | 974 lbs
• Weight trailer mount | 1168 lbs
• Tongue weight | 45–111 lbs

Frame:

• Painted & soundproofed hot dipped galvanized steel & aluminum body
• Hinged hood with 2 gas springs for easy opening and closing
• Removable canopy panels for easy maintenance
• External lifting hoist ring centered which simplifies handling
• Engine and air-end mounted on anti-vibration pads to absorb vibrations
• OSHA approved fan protection guard as standard
• Frame with flexible rigid floor

Warranty Options:

• 1 Year Standard
• 10 Year Air End Extended
• Extended Lifetime Pump Warranty
• 3 Year Engine Warranty
• Standard All technical specifications are in accordance with the requirements of below listed EC directives. 2006/42/EC = Machinery Directive – 2009/105/EC = Simple Pressure Vessels Directive – 2000/14/EC = Noise Emission of Outdoor Equipment Directive
