Product Description

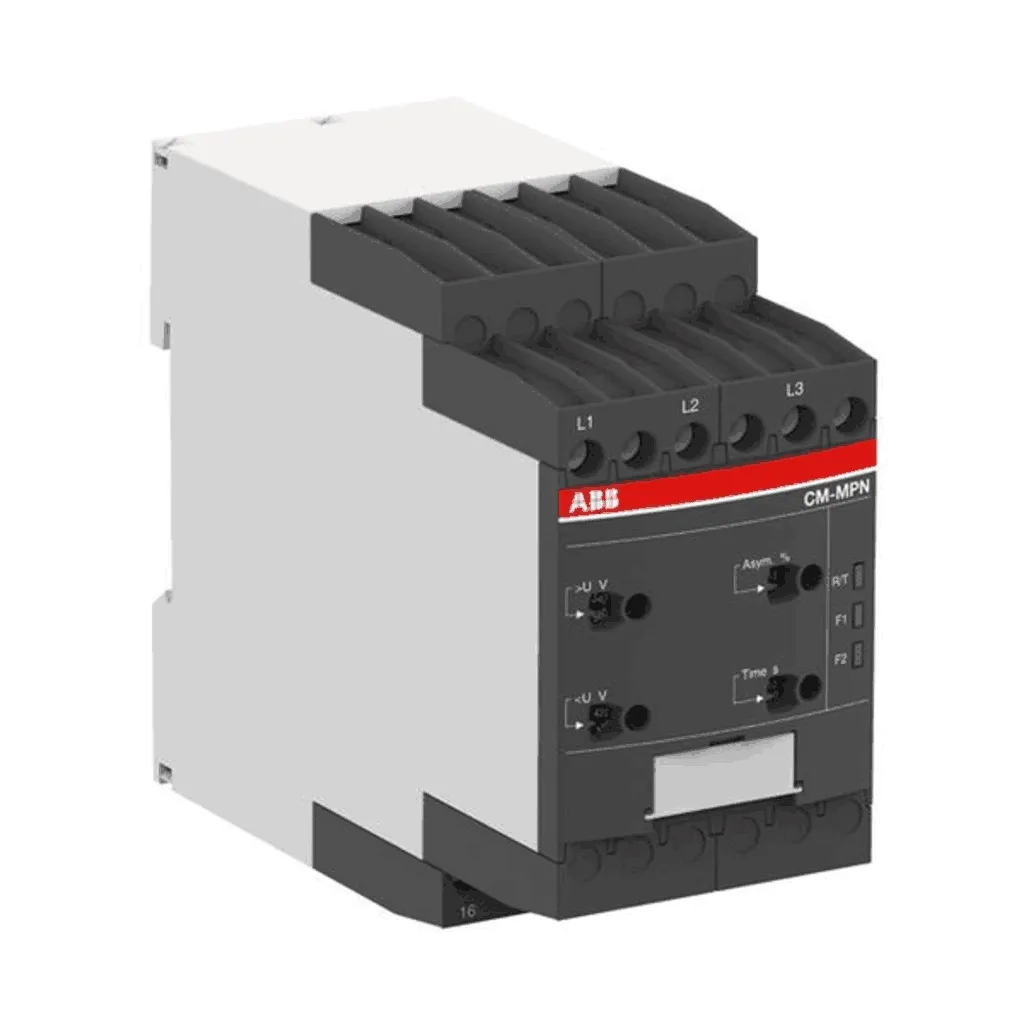

• The CM-MPN is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 350-580 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable
• The CM-MPN.52S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation
• The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory
• The device offers maintenance free Easy Connect Technology with push-in terminals
• Rated Frequency (f) : Supply Circuit 50/60 Hz
• Output : 2 x 1 c/o or 1 x 2 c/o contacts, configurable
• Time Range : 200 ms start-up delay , 0 s or 0.1-30 s tripping delay (ON or OFF)
• Terminal Type : Screwless Terminals
• Rated Operational Current AC-12 (I_e) : (230 V) 4 A
• Rated Operational Current AC-15 (I_e) : (230 V) 3 A
• Rated Operational Current DC-12 (I_e) : (24 V) 4 A
• Rated Operational Current DC-13 (I_e) : (24 V) 2 A
• Minimum Switching Capacity : 24 V , 10 mA
• Degree of Protection : Housing IP50 , Terminals IP20
• Overvoltage Category : III
• Pollution Degree : 3
• Short-Circuit Protective Devices : Output Circuit NC - F Type Fuses 6 A , Output Circuit NO - F Type Fuses 10 A
• Electrical Durability : AC-12 100000 cycle
• Mechanical Durability : 30000000 cycle
• Wire Stripping Length : 8 mm
• Mounting Position : Any
• Product Net Width : 45 mm
• Product Net Depth / Length : 104.8 mm
• Product Net Height : 85.6 mm
• Product Net Weight : 0.226 kg

Product Specification
