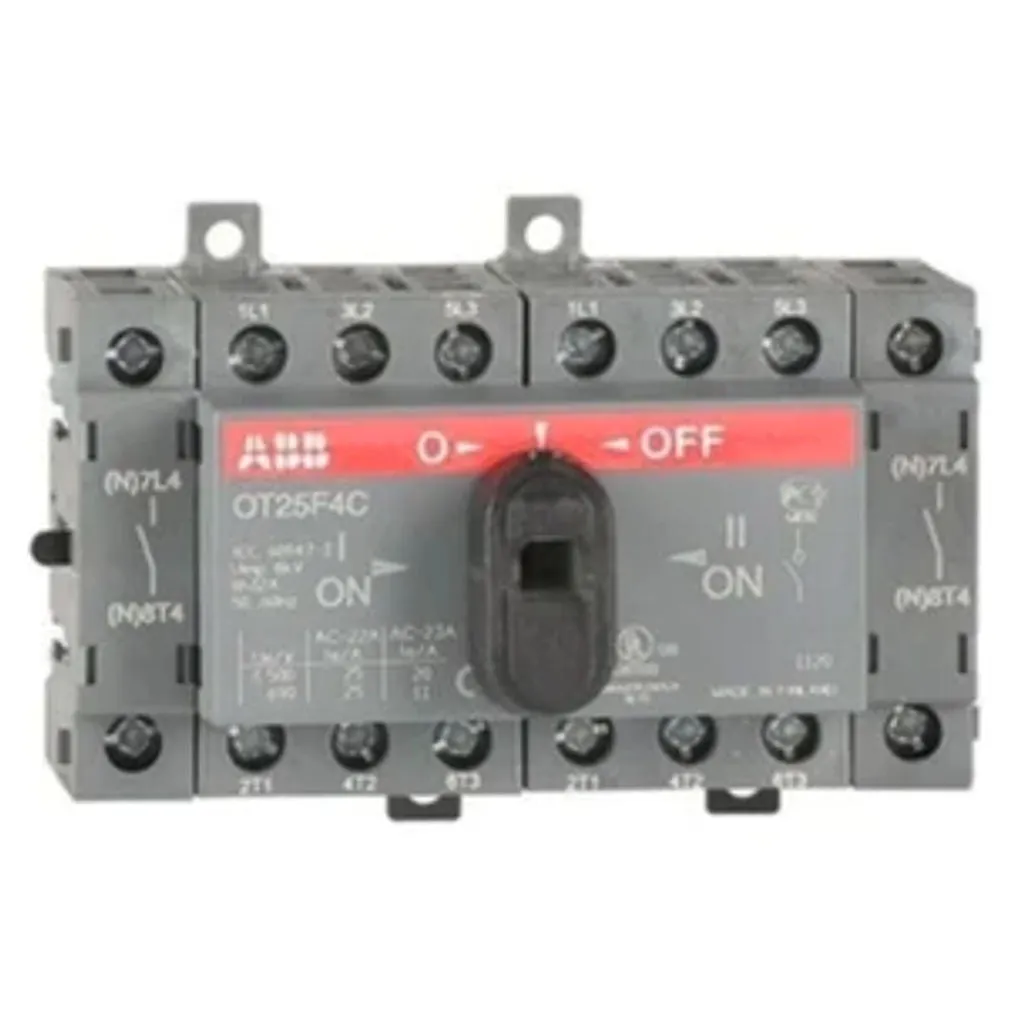

Product Description
-
Manual changeover switches, I-O-II -operation
-
Handle and shaft need to be ordered separately, Open transition
-
Conventional Thermal Current (Ithe) : Fully Enclosed 25 A
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 750 V
-
Rated Operational Voltage : 750 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 0.5 kiloampere rms
-
Pollution Degree : 3
-
Handle Color : Black
-
Handle Type : Handle and shaft not included
-
Switches Operating Mechanism : Mechanism on Top of the Switch
-
Distance Between Phases : Standard
-
Position of Line Terminals : Top In - Bottom Out, Bottom In - Top Out
-
Operating Mode : Front operated
-
Mounting Type : Base mounting
-
Number of Poles : 4
-
Cable Cross-Section : 0.75 ... 10 mm²
-
Degree of Protection : Front IP20
-
Product Net Width : 96 mm
-
Product Net Height : 68 mm
-
Product Net Depth / Length : 68 mm
-
Product Net Weight : 0.31 kg
Product Specification
|
Rated Current(A) |
Product Id |
Model |
|
16 |
1SYN104831R1001 |
OT16F4C |
|
25 |
1SYN104877R1001 |
OT25F4C |
|
40 |
1SYN104934R1001 |
OT40F4C |
|
63 |
1SYN105369R1001 |
OT63F4C |
|
80 |
1SYN105418R1001 |
OT80F4C |
|
100 |
1SYN105019R1001 |
OT100F4C |
|
125 |
1SYN105054R1001 |
OT125F4C |
