Product Description
-

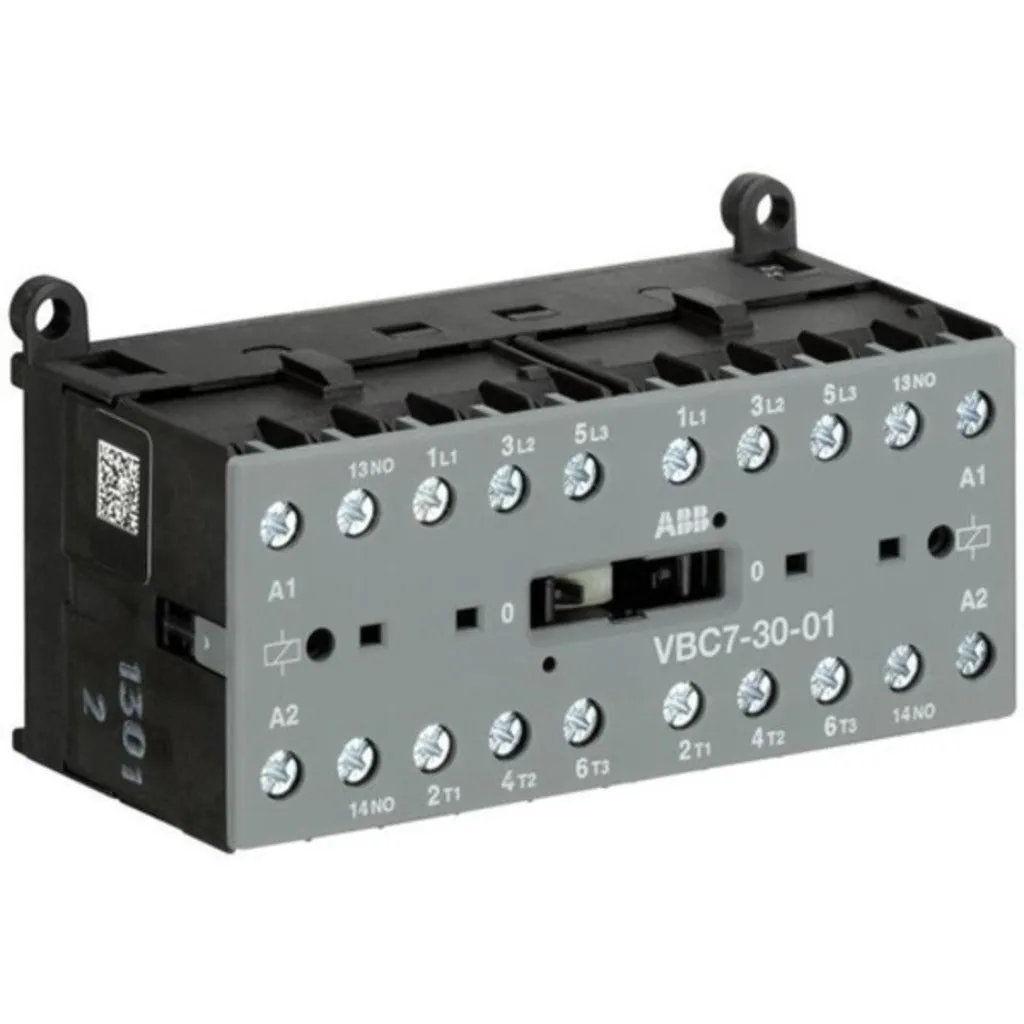

The VBC7-30-01 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock
-
They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3)
-
Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting
-
Number of Poles : 4
-
Rated Operational Voltage : Main Circuit 690 V AC
-
Rated Impulse Withstand Voltage (Uimp) : Main Circuit 6 kV
-
Rated Insulation Voltage (Ui) : 690 V , acc. to UL/CSA 600 V
-
Number of Main Contacts NC : 0
-
Number of Main Contacts NO : 3
-
Number of Auxiliary Contacts NC : 1
-
Number of Auxiliary Contacts NO : 0
-
Conventional Free-air Thermal Current (Ith) : Main Circuit 20 A
-
Pollution Degree : 3
-
Mechanical Durability : 10000000 cycle
-
Product Net Width : 96.5 mm
-
Product Net Height : 57.5 mm
-
Product Net Depth / Length : 46.5 mm
-
Product Net Weight : 0.355 kg
Product Specification
|
Product Id |
Type |
|
GJL1313901R0011 |
VBC7-30-01-01 Mini Rev.Contactor |
|
GJL1313901R0014 |
VBC7-30-01-04 Mini Rev.Contactor |
|
GJL1313901R0015 |
VBC7-30-01-05 Mini Rev.Contactor |
