Product Description

• Degree of Protection : acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

• Maximum Electrical Switching Frequency : AC-15 1200 cycles per hour , DC-13 900 cycles per hour

• Maximum Mechanical Switching Frequency : 3600 cycles per hour

• Mounting Position : Front Mounting

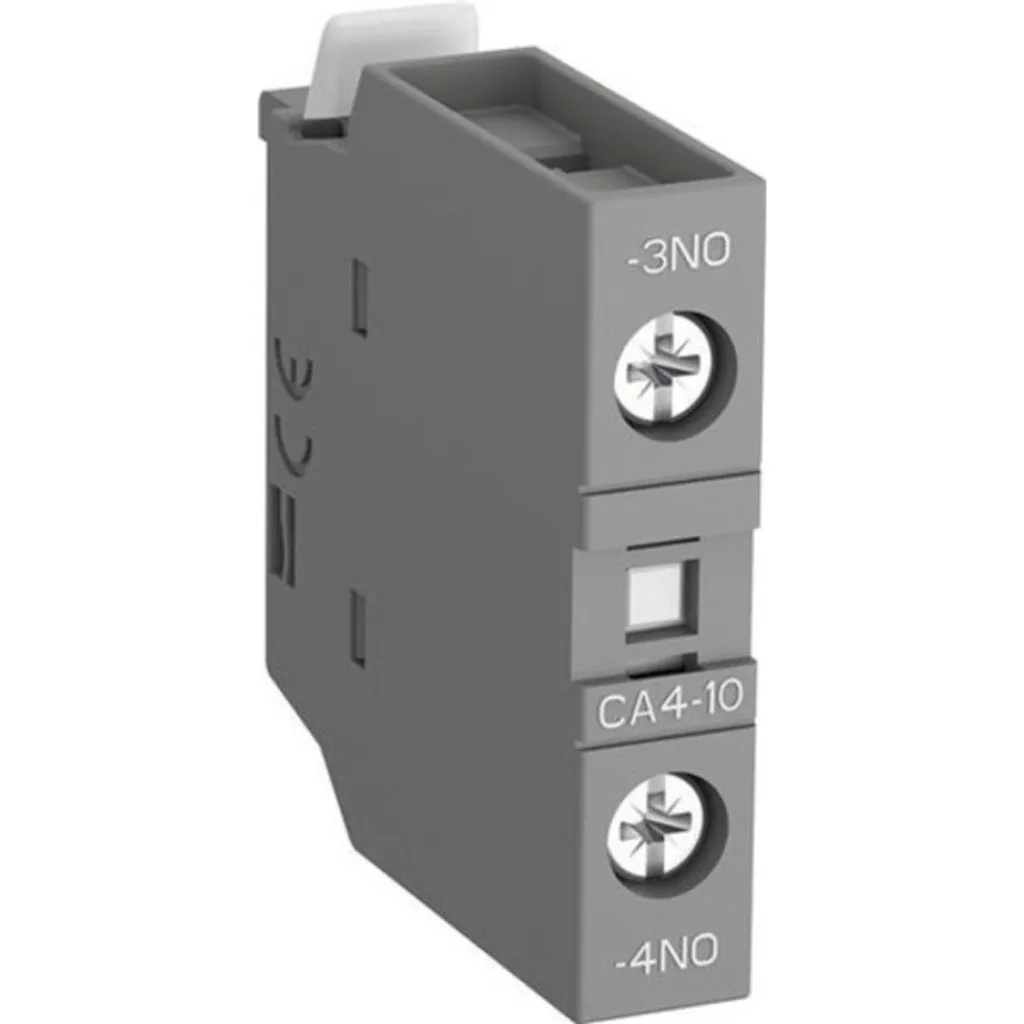

• Product Name : Auxiliary Contact Block

• Rated Breaking Capacity acc. to IEC 60947-5-1 : 10 x Ie AC-15

• Rated Frequency (f) : Auxiliary Circuit 50 / 60 Hz

• Rated Impulse Withstand Voltage (U_imp) : 6 kV

• Suitable For : AF09,AF12,AF16,AF26,AF30,AF38,AF40,AF52,AF65,AF80,AF96,NF

• Product Net Weight : 0.014 kg
